Thermocouples with Threaded Thermowell

Optional
Approvals
EX CertificationUKCA Certification

Thermocouple assemblies with threaded thermowells for direct process installation — fast-response temperature measurement with reliable sensor protection.

Thread­ed ther­mow­ells allow ther­mo­cou­ple assem­blies to be screwed direct­ly into pipework, ves­sels, or process con­nec­tions for a secure, leak-tight instal­la­tion. Avail­able in Type E, J, K, N, and T with BSPP, BSPT, or NPT threads in sizes from ¼” to 1″, the ther­mow­ell pro­tects the sens­ing ele­ment while allow­ing removal and replace­ment with­out inter­rupt­ing the process. Heli­cal (straked) ther­mow­ell designs are also avail­able for high-veloc­i­ty appli­ca­tions where vor­tex-induced vibra­tion is a con­cern. Iso­lat­ed, ground­ed, or exposed junc­tion options are avail­able, along with ATEX, IECEx, and UKEX approvals for haz­ardous area installations.

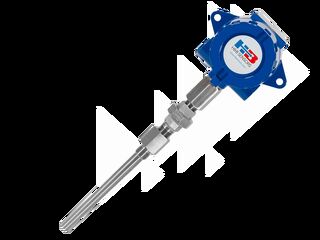

A thermocouple with a threaded thermowell.

Customisation Options

Every Ther­mo­cou­ple can be tai­lored to your needs — from ele­ment type and wiring to full bespoke tem­per­a­ture sen­sor designs engi­neered to your specification.

Sensor Type
Type E, Type J, Type K, Type N, or Type T
Sensor Configuration
Sim­plex, Duplex, or Triplex
Sensor Junction
Iso­lat­ed, Ground, or Exposed
Probe Material
310 Stain­less Steel, 316 Stain­less Steel, or InconelⓇ Alloy 600
Housing Material
Alu­mini­um, Stain­less Steel, or Plastic
Termination
4 – 20 mA Trans­mit­ter, Indi­ca­tor, Ter­mi­nal Block, or Tails
Approvals (Optional)
ATEX, IECEx, and UKEX – Exd and Exia
Extension
Nip­ple & Lock­nut or Nip­ple Union Nipple
Thermowell Design
Sol­id Drilled, Fab­ri­cat­ed or Heli­cal (Straked)
Stem Profile
Par­al­lel or Tapered
Thread Size
1⁄4″, 1⁄2″, 3⁄4″, or 1″
Thread Type
BSPP, BSPT, or NPT
Material
Car­bon Steel (e.g. A105), Stain­less Steel (e.g. 304, 316), Duplex & Super Duplex Steel (e.g. F51, F55), Nick­el Alloy (e.g. Inconel®, Hastel­loy®), Ceramic
Talk to an Engineer
TTA101

Thermocouple Sensor with Solid Drilled Threaded Thermowell

A ther­mo­cou­ple sen­sor sup­plied with a sol­id drilled thread­ed ther­mow­ell, designed to pro­tect the sens­ing ele­ment in demand­ing process envi­ron­ments. Suit­able for direct instal­la­tion into pipework or ves­sels, it is well suit­ed to high-pres­sure and high-tem­per­a­ture appli­ca­tions where robust­ness is essential.

TTA101: Thermocouple Sensor with Solid Drilled Threaded Thermowell

Datasheet: TTA101

274Kb
TTA101H

Thermocouple Sensor with Solid Drilled Helical Threaded Thermowell

A ther­mo­cou­ple sup­plied with a heli­cal straked drilled thread­ed ther­mow­ell, engi­neered to sup­press vor­tex shed­ding and reduce flow-induced vibra­tion. The heli­cal geom­e­try low­ers dynam­ic stress­es on the sens­ing ele­ment while pro­vid­ing robust mechan­i­cal pro­tec­tion. Suit­able for high-pres­sure, high-tem­per­a­ture, and high-veloc­i­ty appli­ca­tions where dura­bil­i­ty and reli­a­bil­i­ty are essential.

TTA101H: Thermocouple Sensor with Solid Drilled Helical Threaded Thermowell
TTA501

Thermocouple Sensor with Fabricated Threaded Thermowell

This ther­mo­cou­ple sen­sor assem­bly incor­po­rates a fab­ri­cat­ed thread­ed ther­mow­ell, offer­ing a prac­ti­cal and cost-effec­tive solu­tion for many indus­tri­al process appli­ca­tions. It pro­vides reli­able pro­tec­tion for the sen­sor while allow­ing flex­i­bil­i­ty in mate­ri­als and dimensions.

TTA501: Thermocouple Sensor with Fabricated Threaded Thermowell

Datasheet: TTA501

275Kb
