RTDs with Weld-In Thermowell

Optional
Approvals
EX CertificationUKCA Certification

RTD assemblies with weld-in thermowells delivering maximum mechanical strength and long-term reliability in high-pressure or high-velocity applications.

Weld-in ther­mow­ells are per­ma­nent­ly attached to the pipe or ves­sel wall, pro­vid­ing a per­ma­nent process con­nec­tion. Leak integri­ty and mechan­i­cal strength depend on the design, mate­r­i­al, weld­ing, inspec­tion and oper­at­ing con­di­tions. Ide­al for high-pres­sure, high-veloc­i­ty flow, or high-vibra­tion envi­ron­ments such as pow­er gen­er­a­tion, oil & gas, and chem­i­cal pro­cess­ing, they are avail­able in a range of mate­ri­als includ­ing car­bon steel, stain­less steel, and Duplex alloys. ATEX, IECEx, and UKEX approvals are avail­able, with all assem­blies man­u­fac­tured to your specification.

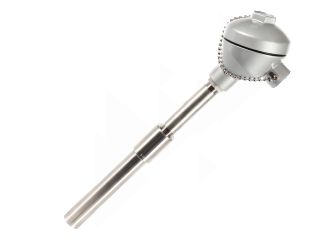

An RTD with a weld-in thermowell.

Customisation Options

Every RTD can be tai­lored to your needs — from ele­ment type and wiring to full bespoke tem­per­a­ture sen­sor designs engi­neered to your specification.

Sensor Type
Pt100 or Pt1000
Sensor Configuration
Sim­plex, Duplex, or Triplex
Sensor Wiring
2, 3, or 4
Sensor Accuracy
1⁄10 DIN, 1⁄5 DIN, 1⁄3 DIN, Class A, or Class B
Housing Material
Alu­mini­um, Stain­less Steel, or Plastic
Termination
4 – 20 mA Trans­mit­ter, Indi­ca­tor, Ter­mi­nal Block, or Tails
Approvals (Optional)
ATEX, IECEx, and UKEX – Exd and Exia
Extension
Nip­ple & Lock­nut or Nip­ple Union Nipple
Thermowell Design
Sol­id Drilled or Fabricated
Stem Profile
Par­al­lel or Tapered
Material
Car­bon Steel (e.g. A105), Stain­less Steel (e.g. 304, 316), Duplex & Super Duplex Steel (e.g. F51, F55), Nick­el Alloy (e.g. Inconel®, Hastelloy®)
Design Temperature
-196°C to +650°C
Talk to an Engineer
RWA101

RTD Sensor with Solid Drilled Weld In Thermowell

An RTD sen­sor sup­plied with a sol­id drilled weld-in ther­mow­ell, designed for per­ma­nent instal­la­tion into pipework or ves­sels. This con­struc­tion pro­vides excel­lent mechan­i­cal strength and process integri­ty, mak­ing it suit­able for high-pres­sure or high-tem­per­a­ture applications.

RWA101: RTD Sensor with Solid Drilled Weld In Thermowell

Datasheet: RWA101

258Kb
RWA501

RTD Sensor with Fabricated Weld In Thermowell

This RTD sen­sor assem­bly fea­tures a fab­ri­cat­ed weld-in ther­mow­ell, offer­ing a prac­ti­cal and cost-effec­tive solu­tion for many indus­tri­al process­es. It pro­vides reli­able sen­sor pro­tec­tion while allow­ing flex­i­bil­i­ty in ther­mow­ell design and materials.

RWA501: RTD Sensor with Fabricated Weld In Thermowell

Datasheet: RWA501

256Kb
